9500lb Electric ATV Winch , 12 Volt Electric Winch Remote Control

Name: 9500lb Electric ATV Winch 12 Volt Electric Winch Remote Control
Brand: SEAGULL
Price: 1 USD

Brand Name : SEAGULL

Model Number : H9500(12V/24V)

Certification : GS/CE

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiation

Supply Ability : 12,000pcs per month

Delivery Time : 30 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with steel case for outer packing

Payment Terms : L/C, D/A, T/T, D/P

Product Name : Electric Winch

Application : Warehouse, Building, Wharf, Ect.

Capacity : 9500lb

Surface : Painting, Chorme

Standard : GS/CE

Type : Electric

Contact Now

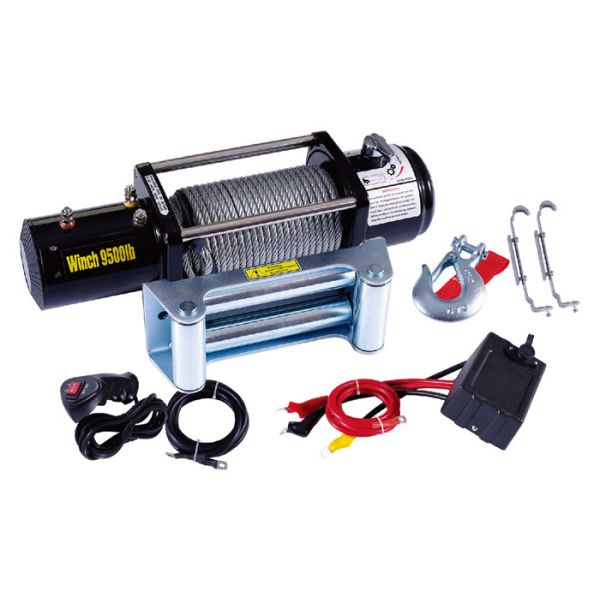

9500lb Electric ATV Winch

PRODUCT SUMMARY

Features an all-metal planetary geartrain plus mechanical and dynamic braking. Frees pooling clutch with ergonomic control. Has sealed solenoids for all-weather protection. Sealed handlebar switch and 10-ft. remote. Includes roller fairlead and mounting plate.

DESCRIPTION

* Capacity from 0.5T-30T.

* Wheels lubricated and equipped with bearings for long life.

* More thickness of the steel plates and strong shaft to ensure the good safety.

* The static test is 4times of capacity, and running test is 1.5times of capacity one by one

* One year warranty.

KEY SPECS

Model	H9500(12V/24V)
Rated line pull	9500lb(4300kg) single line
Motor	4.0KW/5.5HP 12V,Series Wound
Control	Remote switch,12ft(3.7m) lead
Gear train	3 Stage Planetary
Gear reductions ratio	195.4:1
Clutch	Sliding Ring Gear
Braking Action	Two-way,Automatic In-The-Drum
Drum Dimensions	Φ2.5"x8.8"(Φ63.5mmx224mm)
Cable (Dia X L)	Φ21/64"x94'(Φ8.3mmx28m)
Fairlead	4-Way Roller Fairlead
Wireless Remote control	Optional
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge,72"(1.83m)
Overall dimensions	21.1"x6.3"x8.6"(537x160x218mm)
Mounting Bolt Pattern	254mmx114.3mm
N.W. /G.W.	36kg/38kg
